Stryker 1488 urology camera head
Description

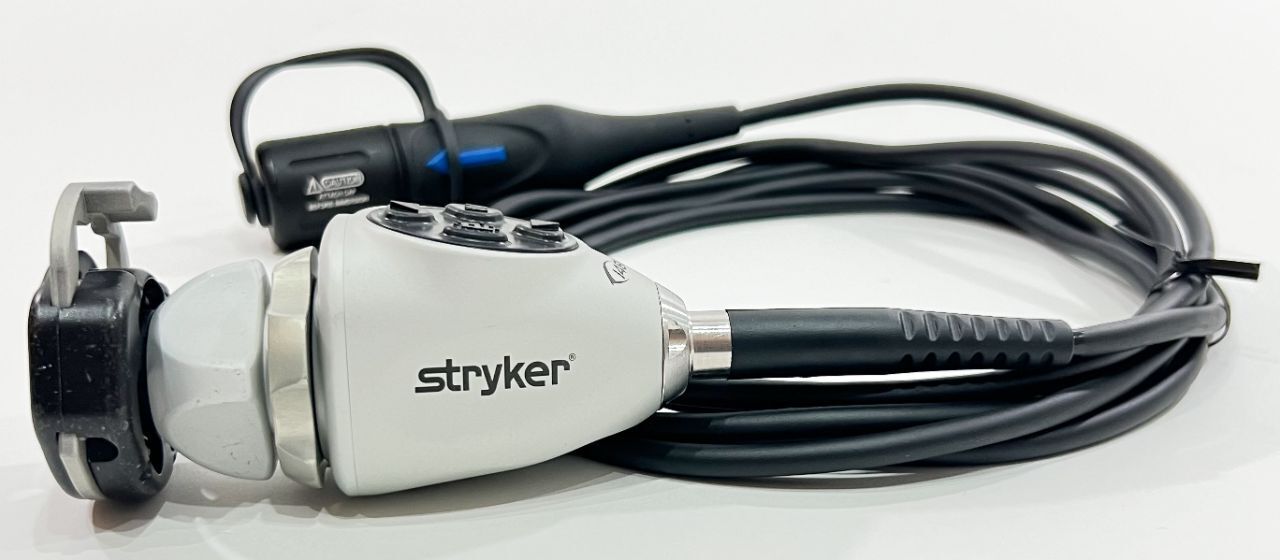

The Stryker 1488 HD camera system is a high-definition 3-chip CMOS imaging platform designed for cross-specialty surgical use, including dedicated settings for urology.
Technical Specifications
- Imaging System: 1/3″ Progressive Scan CMOS (3-chip technology).
- Native Resolution: Full HD 1920 x 1080p.
- Scanning System: Progressive scan throughout the entire system (from head to console).
- Aspect Ratio: 16:9.
- Signal-to-Noise Ratio: 70 dB.
- Auto Shutter Range: 1/60 (or 1/50) to 1/50,000 seconds.
- Digital Zoom: 2x digital zooming capability.
Urology-Specific Features

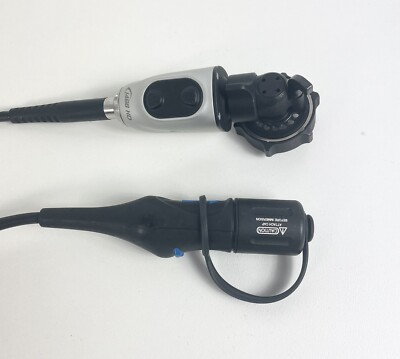

- 90° Pendulum Design: The urology-specific camera head (Model: 1488-310-130) often features a 90° angle and 360° rotation to facilitate easier access and better orientation during urological interventions like cystoscopy and ureteroscopy.
- Specialty Imaging Modes: Includes a dedicated “Urology” preset that automatically optimizes color and light parameters for urological anatomy.
- Integrated Device Control: Allows surgeons to control connected devices, such as the L9000 LED light source or a pneumatic scope holder, directly from the four programmable buttons on the camera head.
Physical & Environmental Data
- Camera Cable: 3.15 m sealed cable; 6.30 m extension options are available.
- Protection Rating: IPX7 (protected against temporary immersion in water).
- Operating Conditions: 10–30°C temperature; 25–75% relative humidity.
- Sterilization: Non-Autoclavable. Validated for STERRAD, Steris (System 1E), ETO, and CIDEX.
Tomlin Medical +4
-
Connectivity & Compatibility
- Mounting: Standard C-mount compatibility for various telescope interfaces.
- Outputs: DVI, SDI, and S-Video for versatile monitor connections.
