1688 4K Pendulum Camera Head
Description

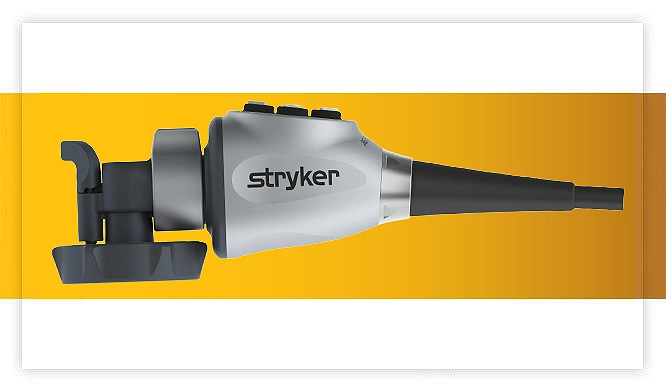

The Stryker 1688 AIM 4K camera system features the 1688 4K Pendulum Camera Head, which is specifically optimized for urology procedures. It is the lightest camera head in the 1688 portfolio and includes specialized ergonomics to handle the unique angles required in urological surgery.
Urology-Specific Features
- Pendulum Design: Features a 90° angle between the camera head and the scope, allowing for easier access and maneuverability during urological procedures.
- Automatic Image Flip: The system automatically detects the camera head’s orientation and rotates the image to maintain the correct view for the surgeon.
- Lightest Profile: Designed to be the lightest camera head in the series to reduce surgeon fatigue during long procedures.
- Advanced Imaging Modalities (AIM): Optimized for urology to help distinguish anatomical variances and overcome poor vision through 4K resolution.
- IRIS (Infrared Illuminated System): Uses lighted ureteral stents to help mitigate the risk of ureteral injury during surgery.
Technical Specifications
| Feature | Specification |
|---|---|
| Resolution | Native 4K UHD (3840 x 2160 pixels) |
| Sensor Type | 1/2.8″ Progressive Scan 3-Chip CMOS |
| Weight | Approx. 1.0 lb (0.5 kg) for the camera head |
| Output Formats | 4K UHD and 1080p HDTV |
| Scanning System | Horizontal: 135.00 kHz; Vertical: 60.00 Hz |
| Imaging Modes | White Light, SPY Overlay, SPY ENV, SPY Contrast, and IRIS |
| Connectivity | C-mount coupler compatibility or integrated coupler versions |
| Sterilization | Available in autoclavable versions designed for standard sterilization cycles |
The system is managed through the 1688 Camera Control Unit (CCU) and L11 LED Light Source, which provides AutoLight technology to maintain consistent brightness regardless of distance from tissue
