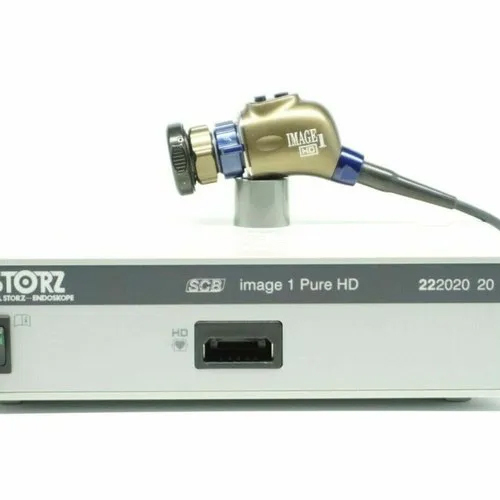

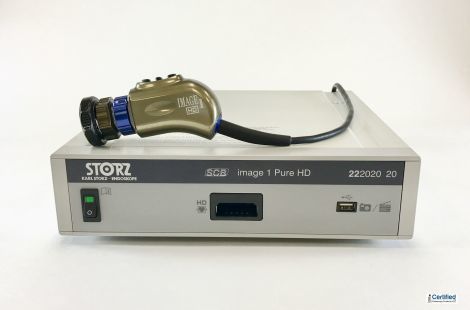

Karl Storz Image 1 Pure HD with HD H3-Z Camera Head
Description

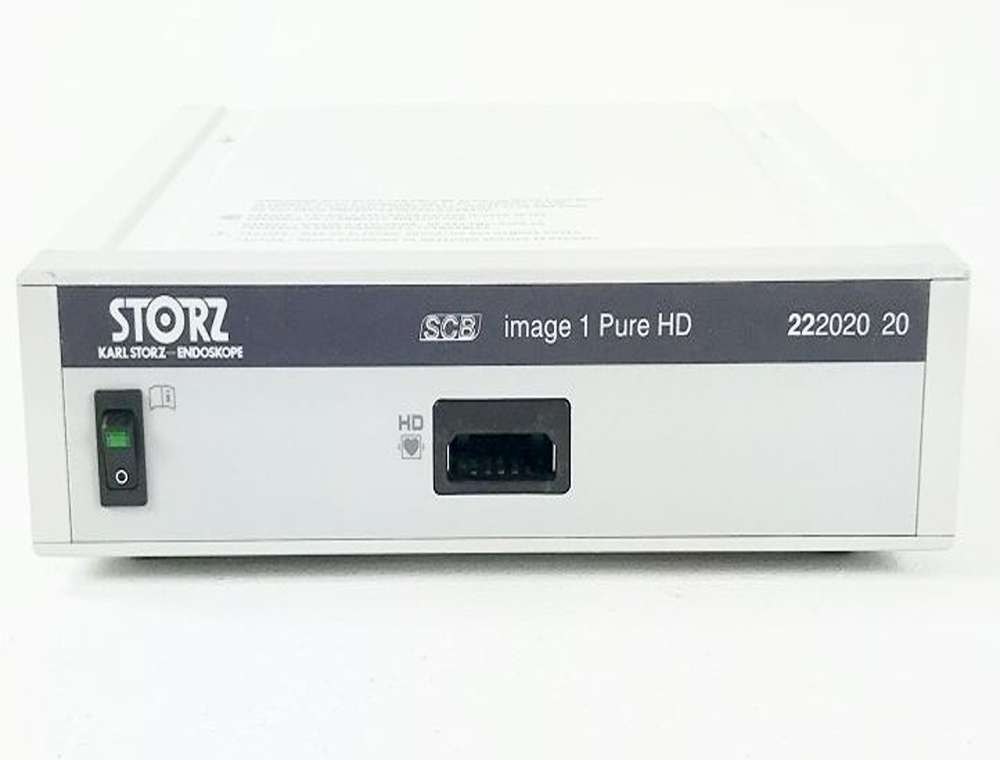

The Karl Storz IMAGE1™ Pure HD (part number 22202020) is a high-definition camera control unit (CCU) designed as a cost-effective entry point for Full HD endoscopic imaging. It is often paired with the H3 three-chip camera head.
System Specifications
- Resolution: Full HD ( 1920 x 1080 pixels).
- Scanning Method: Progressive scan for lag-free, high-quality imaging.
- Video Outputs: Primarily features dual DVI-D outputs for high-resolution monitor connection.
- Integration: Equipped with the Storz Communication Bus (SCB), allowing central control of other Karl Storz devices (like light sources or insufflators) via the camera head buttons or a touchscreen.
- Power Supply:
- Dimensions: Approximately
- Weight: Approximately
- Key Features
- Modular Support: While optimized for Full HD, it is compatible with various Image 1 camera heads, including both high-definition and standard-definition options.
- Documentation: Includes an optional Integrated Capture Module (ICM) for saving Full HD still images and SD video directly to USB flash drives.
- Programmability: Camera head buttons are freely programmable to manage functions like white balance or image capture.
- Specialty Modes: Features specific settings for flexible fiberscopes to maintain image quality across different surgical disciplines.
- Compatible Camera Head (H3 Typical Pair)
- Sensor Type: Three-chip CMOS or CCD depending on the specific head model.
- Sterilization: Options available for soakable, gas, and plasma sterilization; some specific versions are autoclavable.
- Zoom: Often includes an integrated parfocal zoom lens (e.g.,
